Macroscope 7:1

Macroscope 7:1

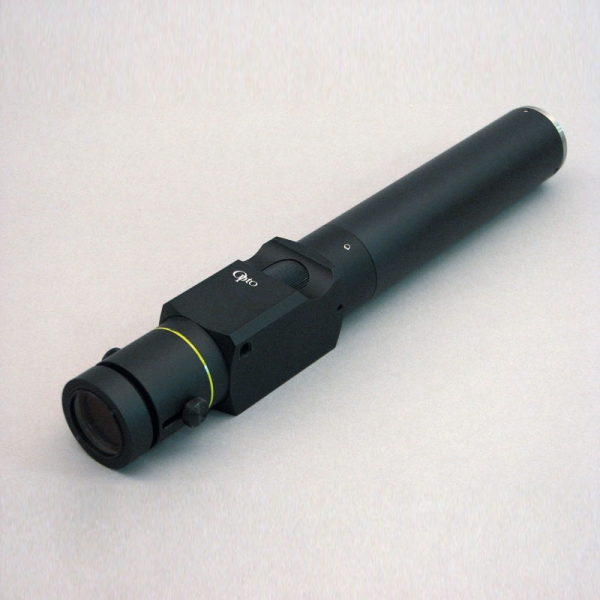

This macroscope comes in two versions: a standard version and a version equipped with an integrated autofocus system. Both have an adjustable magnification ranging from 1 to 7 thanks to a ring provided for this purpose.

They can be adapted to all cameras equipped with a standard type C mount.


Réf. : Multiples


Grossissement Distance de travail
en mm
Champ de vision en mm
Capteur
1/3"
Capteur
1/2"
Capteur
1/1,8"
Capteur
2/3"
0,18x ~ 1,3x 390 26,7 x 20 ~ 3,8 x 2,8 35,6 x 26,7 ~ 5 x 3,8 40 x 29,4 ~ 5,7 x 4,2 48,9 x 36,7 ~ 6,9 x 5,2
0,3x ~ 2,2x 240 16,7 x 12,5 ~ 2,4 x 1,8 22.2 x 16.7 ~ 3.2 x 2.4 25.0 x 18.4 ~ 3.6 x 2.6 30.6 x 22.9 ~ 4.3 x 3.3
0.36 x ~ 2.6 x 194 13.3 x 10.0 ~ 1.9 x 1.4 17.8 x 13.3 ~ 2.5 x 1.9 20.0 x 14.7 ~ 2.8 x 2.1 24.4 x 18.3 ~ 3.5 x 2.6
0.45 x ~ 3.3 x 155 10.7 x 8.0 ~ 1.5 x 1.1 14.2 x 10.7 ~ 2.0 x 1.5 16.0 x 11.8 ~ 2.3 x 1.7 19.6 x 14.7 ~ 2.8 x 2.1
0.6 x ~ 4.4 x 114 8.0 x 6.0 ~ 1.1 x 0.9 10.7 x 8.0 ~ 1.5 x 1.1 12.0 x 8.8 ~ 1.7 x 1.3 14.7 x 11.0 ~ 2.1 x 1.6
0.75 x ~ 5.5 x 95 6.7 x 5.0 ~ 0.9 x 0.7 8.9 x 6.7 ~ 1.3 x 0.9 10.0 x 7.4 ~ 1.4 x 1.0 12.2 x 9.2 ~ 1.7 x 1.3
0.93 x ~ 6.8 x 77 5.3 x 4.0 ~ 0.8 x 0.6 7.1 x 5.3 ~ 1.0 x 0.8 8.0 x 5.9 ~ 1.1 x 0.8 9.8 x 7.3 ~ 1.4 x 1.0


If you would like to receive this prodcut's brochure, you only need to provide you e-mail address:
